Tray Sealer Machine VOLVAC W650VG
Previous
Next
The semi-automatic tray sealer W650VG has been developed in accordance with the design of traysealers. Machine dimensions are 840x667x1482 h mm. Pump capacity is 21 and 45 m³. The top film wrapper is with Encoder system and can process 2 pieces of 190×144 plate molds used as standard side by side.
The semi-automatic bowl sealing machine W650VG is the model that is ordered by customers, which is usually recommended for mass production vacuum packaging processes. It is a very useful machine thanks to its normal and large dimensions due to the large number of products to be vacuumed.
Videos
| Warranty | 3 YEARS |
| Pump Capacity | 45 m³ / h |
| Cycle | 2 cycle/minute |
| Pneumatic System | PEMAKS |
| Electric Switch | OPAŞ |

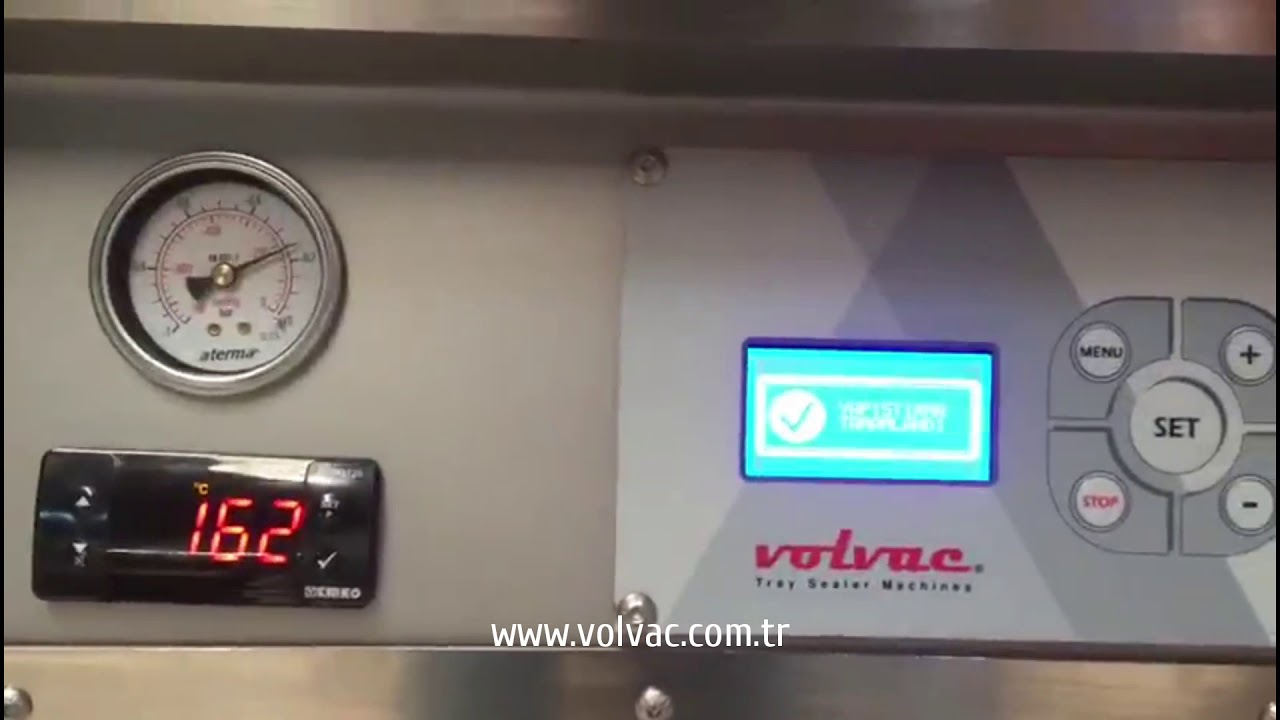

| Control Panel | VOLVAC touch panel |
| Film Wrap | with encoder system |
| Warranty | 2 YEARS |
| Pomp Capacity | 21 m³ / h |
| Cycle | 2 cycle/minute |
| Pneumatic System | PEMAKS |
| Electric Switch | OPAŞ |
| Control Panel | VOLVAC touch panel |
| Film Wrap | with standard wheel system |
| Machine Dimensions | 840 x 667 x 1482 h mm |
| Chamber Sizes | 470 x 481 x 120 h mm |
| Weight | 150kg |
| Top Film Width | 470mm |
| Gas Kit | current |
| Memory Capacity | 24 pcs |
| Air Consumption (1 cycle) | |
| Vacuum Value | 0.5 mbar |
| Pneumatic Feed | 16 NI/6-8 bars |
| Power | 220 volts 50/60 Hz |
| kW | 2 kW |
| Certificate | CE |
| Outer Body | stainless steel AISI304 |
| 95 x 125 mm | 6 pieces |
| 190 x 144 mm | 4 pieces |
| 227 x 178 mm | 2 pieces |
| 325 x 265 mm | 1 pieces |
